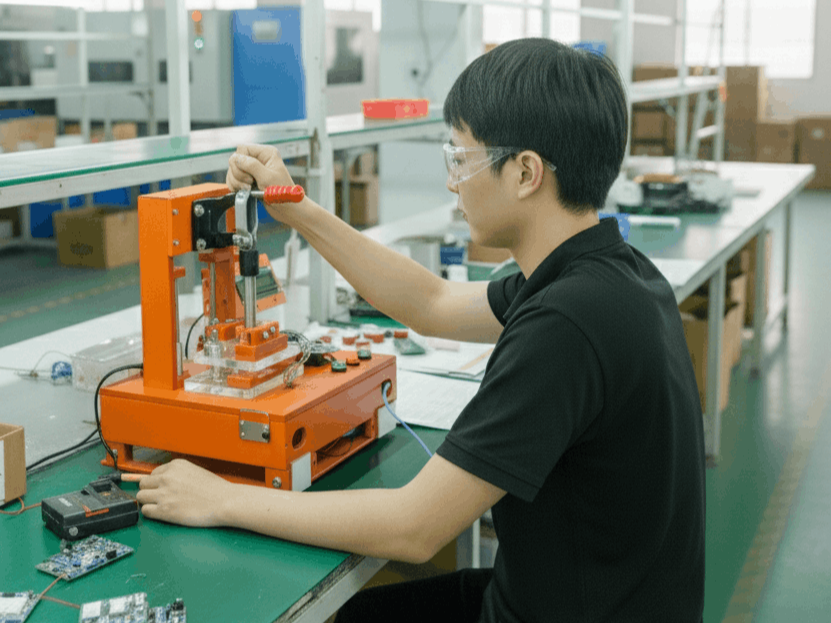

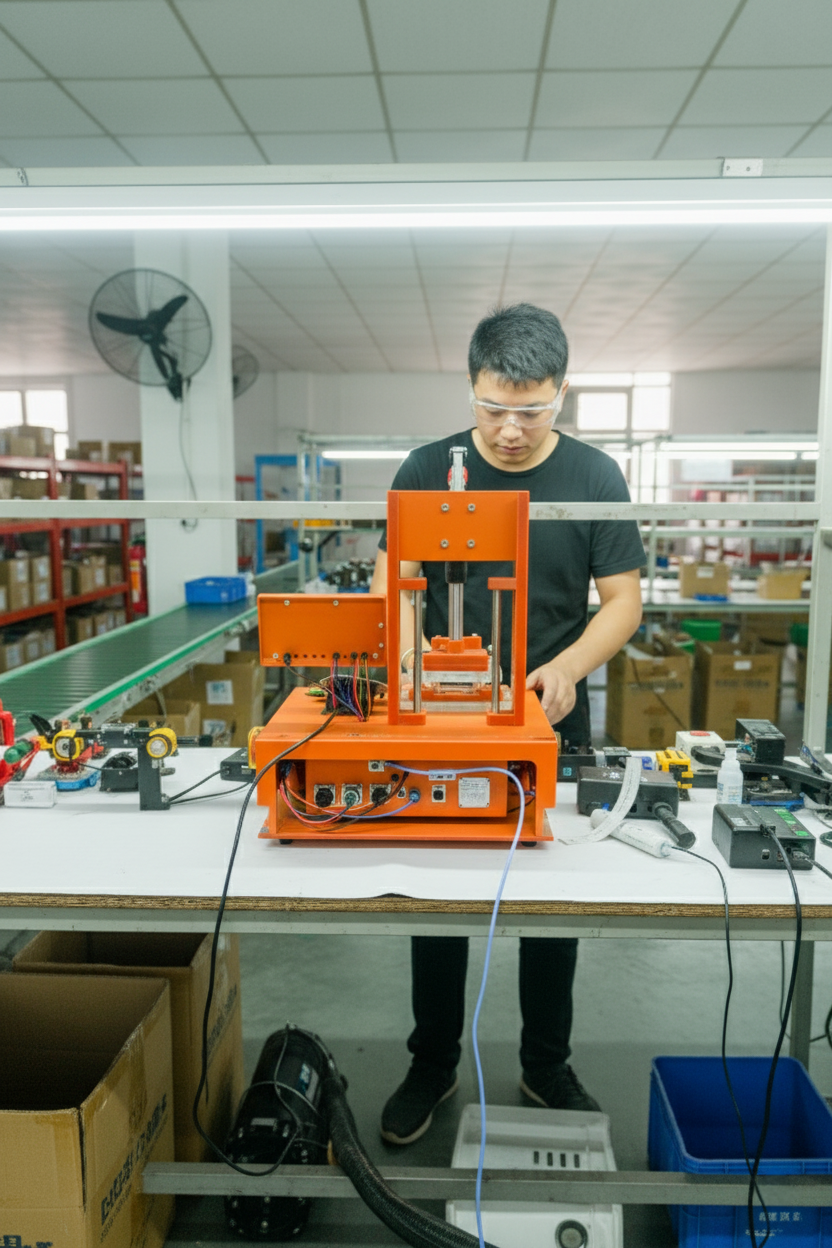

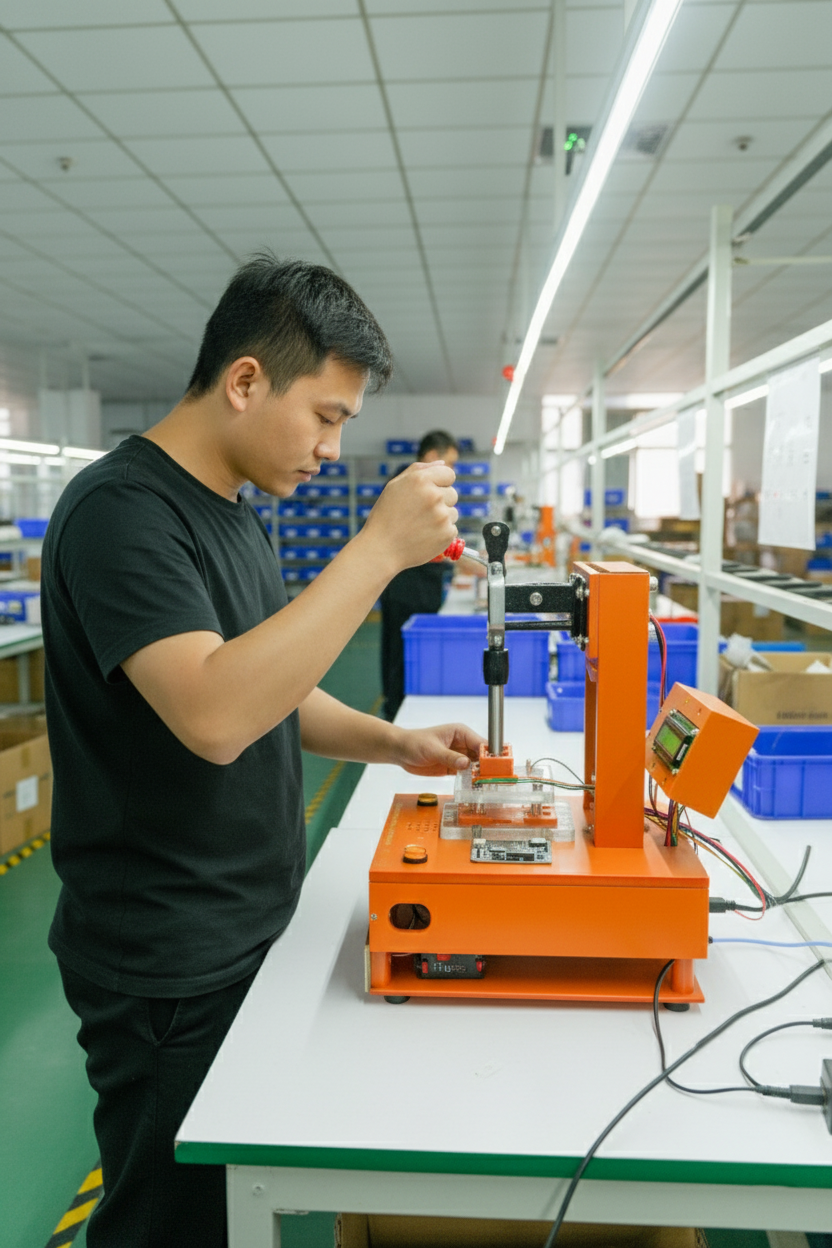

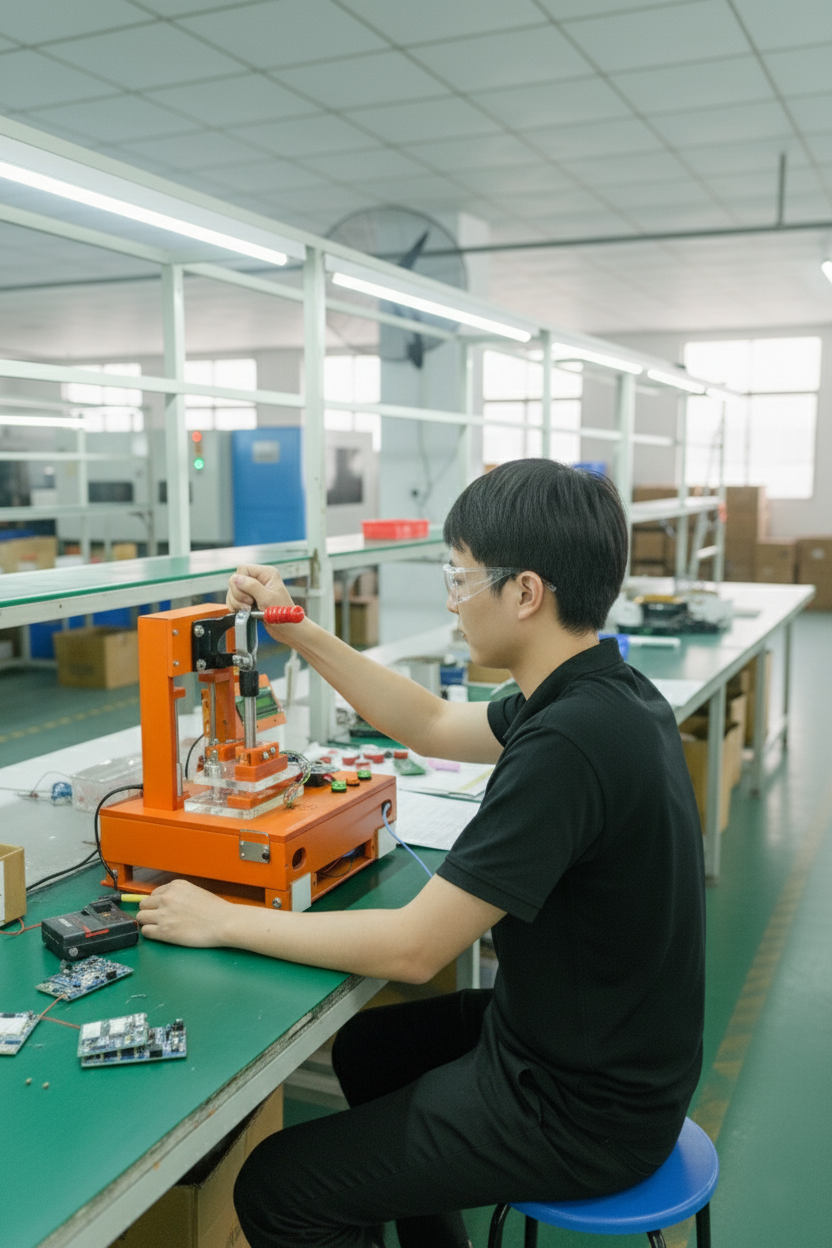

PCB (Printed Circuit Board) functional testing jig
It is used in electronics manufacturing to test assembled circuit boards (PCBAs). The board under test is placed into the fixture, and the top handle presses it down so that spring-loaded test pins (pogo pins) make contact with specific test points on the board. The buttons and small display on the front are used to operate the test procedure, while the connected wiring links the board to measurement instruments or microcontrollers that check signals, voltages, and communication functions.
A PCB may look flawless, but testing is the only way to confirm its quality.
What We Do
Every board goes through continuity checks, functional tests, firmware loading, calibration, and electrical verification using a custom jig. We log results for traceability.
Why It Matters
Consistent quality in PCBs leads to fewer bugs, smoother integration, and more stable final products.
